Capybara RTF (light build)

Capybara RTF (light build)

Normaler Preis €678,00
Normaler Preis €727,20 Verkaufspreis €678,00
Sale Ausverkauft
Inkl. Steuern.

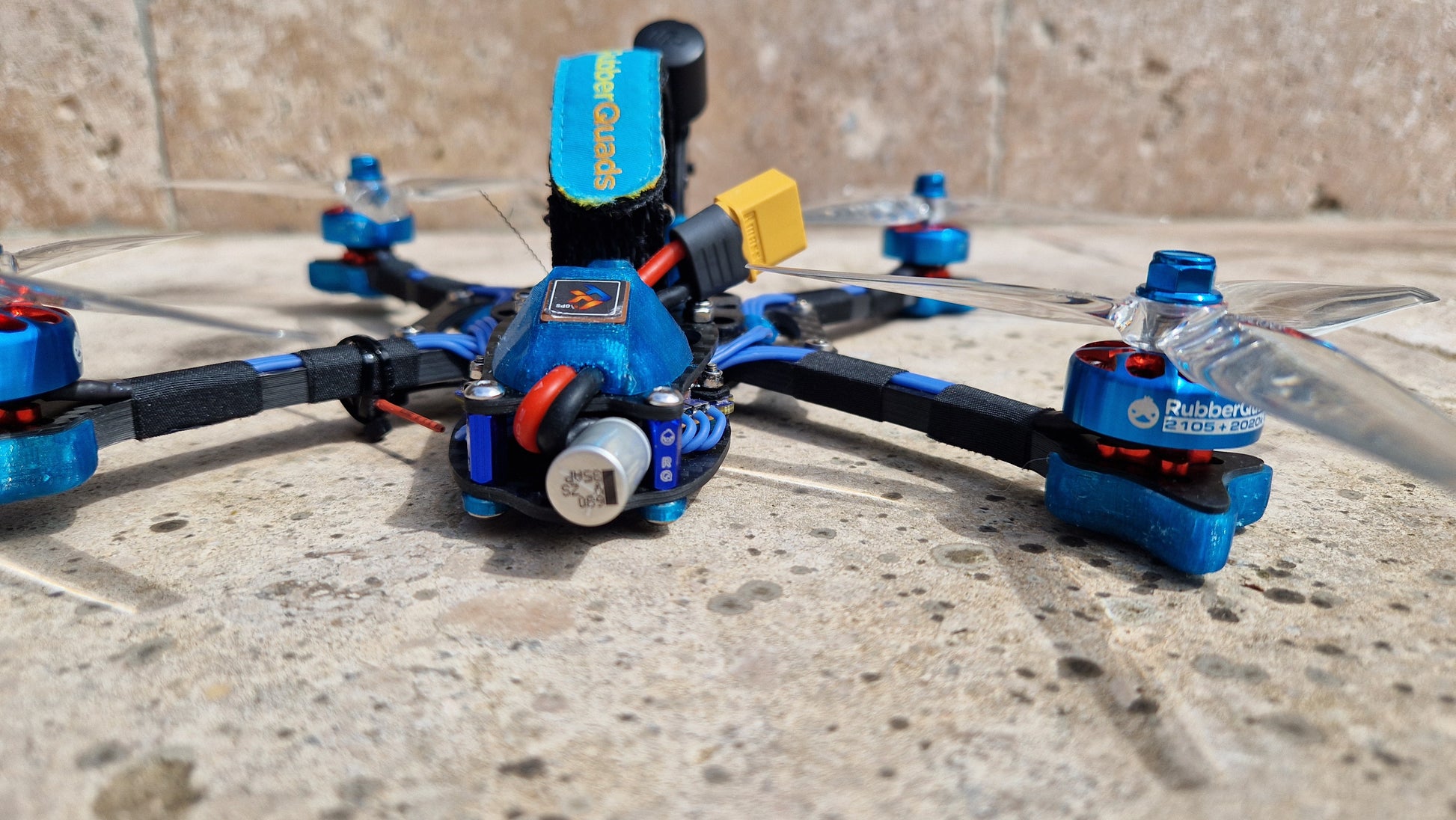

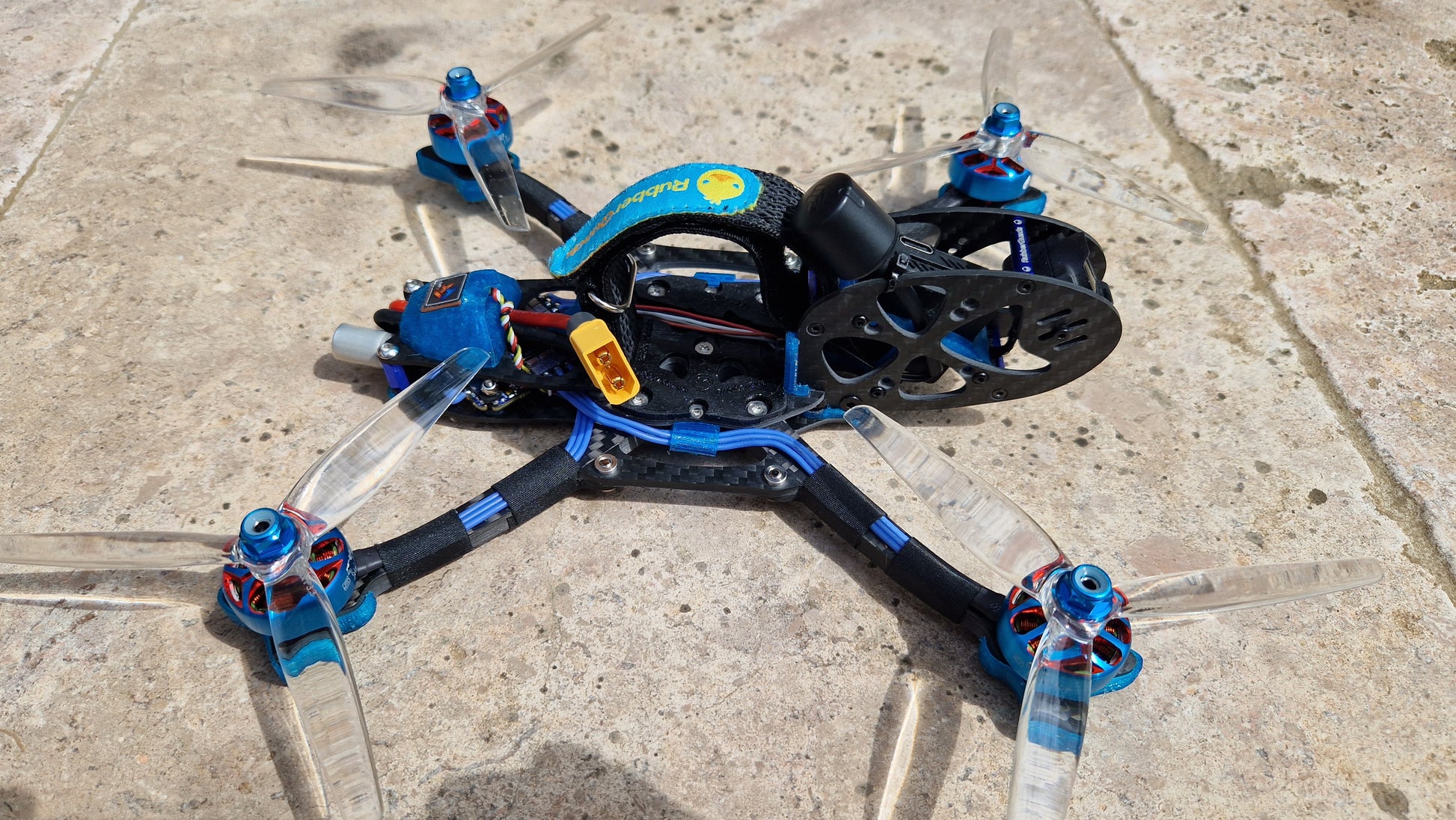

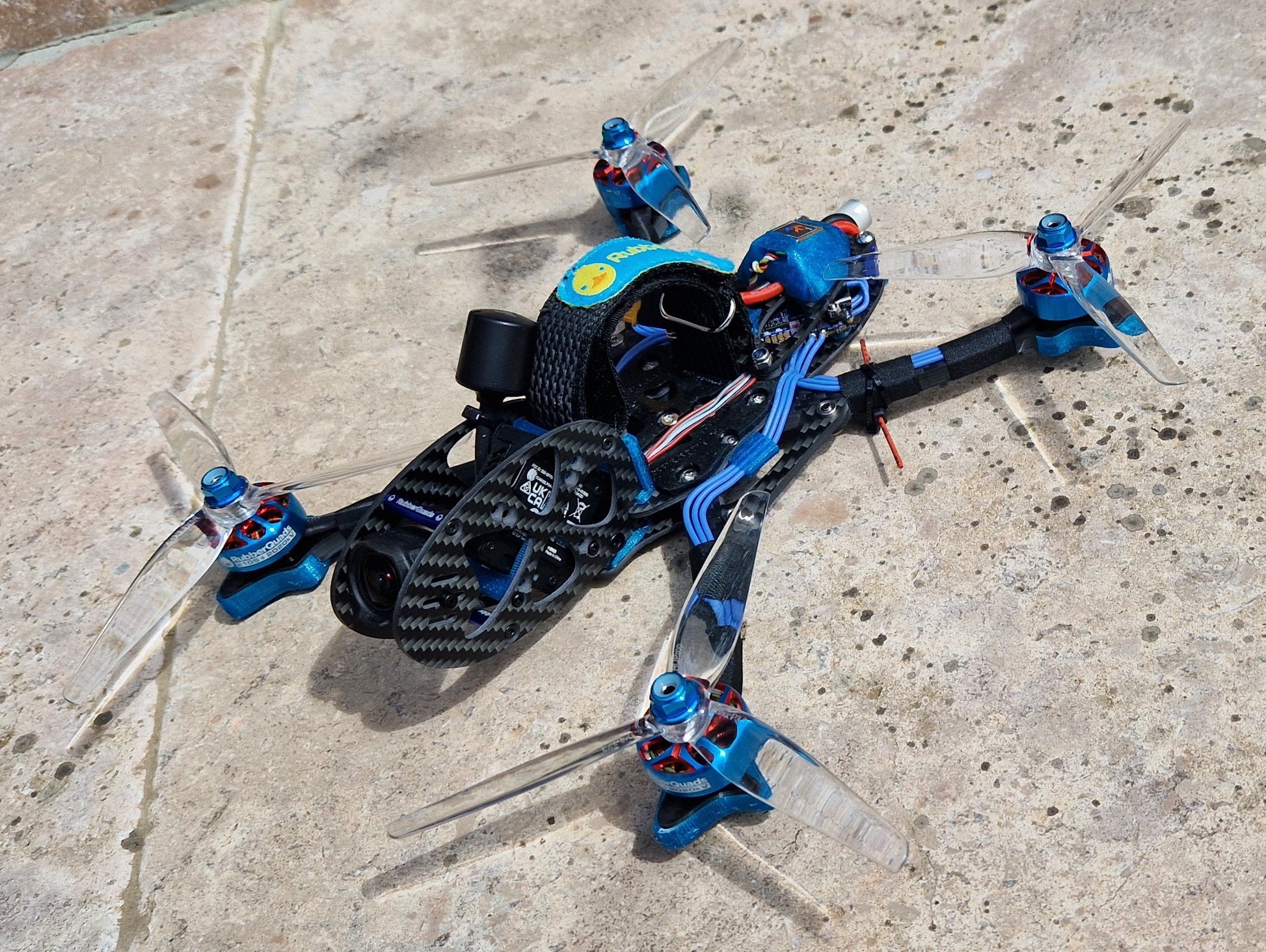

The Capybara5 is our take on lightweight 5" freestyle copter.
We didn't fall down the sub 250g rabbit-hole this time but we still achived weight of only only 320g (~500g AUW with battery).

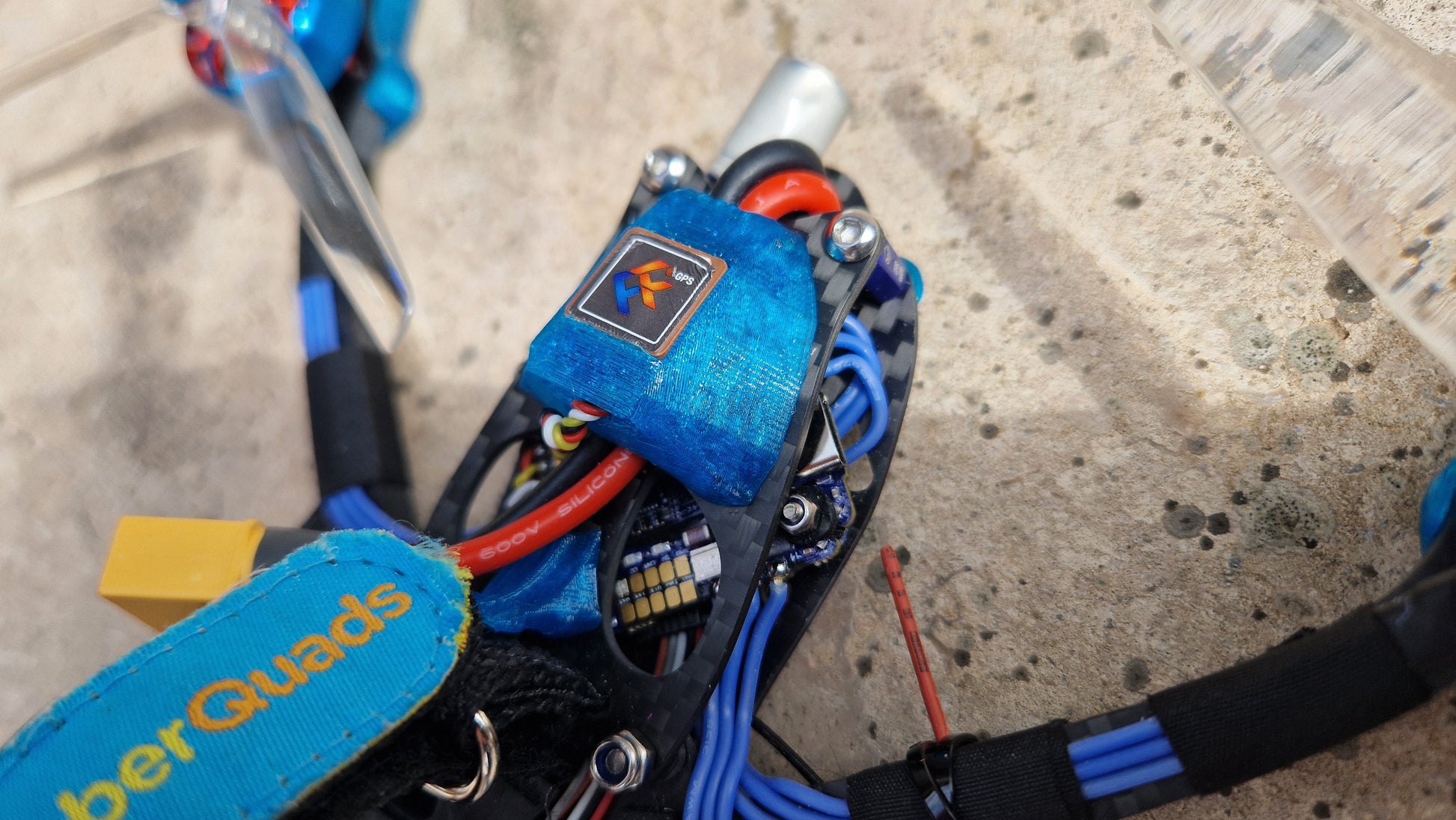

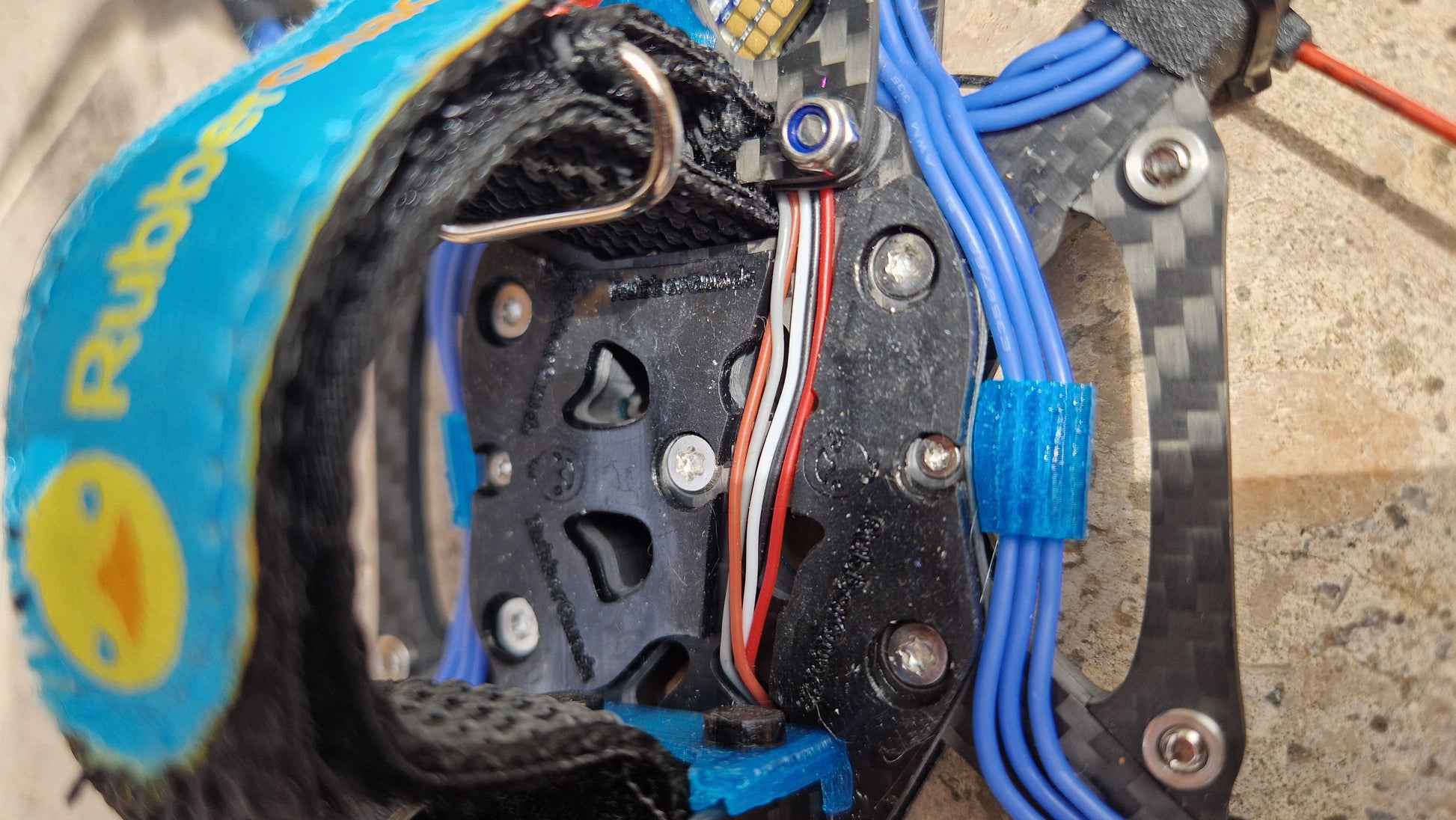

Our main focus while designing this frame was raw freestyle performance. To achive this primary goal we went for a trueX geometry and once again decided on a toilet-tanked battery mount to balance out the pitch and roll axis. To minimize the moment of inertia and get the center of gravity right in the prop-line we placed the main mass (flight-pack) right above the arms and shifted the AIO/flight-stack into the booty where the VTX sits in conventional designs.
Because of the low weight due to the slim frame and tailor-made 2105 motors the braced 6mm wide arms are almost impossible to break (it took some insane crashes in our tests).

Every single Drone get at least flown once by us bevor sending out to ensure 100% functionalty and a perfect PID tune!

If you have any special request let us know ! We will even setup your rates and bind phrase if you let us know ;)

  • Video resolution
  • Mit DJI Goggles 2:
    4K@30/50/60/100/120fps
    2.7K@30/50/60/100/120fps
    1080p@30/50/60/100/120fps

 Mit DJI FPV Goggles V2:
    4K@30/50/60/100/120fps

    2.7K@30/50/60/100/120fps

    1080p@30/50/60/100/120fps

Parts used:

  • Frame: Capybara 5 Inch
  • Motors: 5OinkL 2105 2020KV
  • AIO: Fenix G4 AM32
  • VTX: DJI O3
  • GPS: Flyfish mini M10
  • Receiver: Elrs 2,4ghz
