Flyfish

FlyfishRC M10 Mini GPS

FlyfishRC M10 Mini GPS

Normaler Preis €19,78
Normaler Preis Verkaufspreis €19,78
Sale Ausverkauft
Inkl. Steuern.

Flyfish M10 Mini is a miniature GPS module. With its dimensions of 12,3x16,2x4,9mm it is one of the smallest on the market. Flyfish M10 Mini is built on the new UBLOX chip of the tenth generation. Thanks to this, it has faster satellite search and more accurate position measurement than older GPS modules with the M8 chip. The module supports GPS, GLONASS and BDS.

The package also includes a 3D printed mount for attaching the GPS module to the Lipo strap.

GPS modules with the M10 chip support Betaflight 4.3 and later.

Key Features



  • GPS Module Protocol: Ublox/NMEA
  • Speed Accuracy: 0.05m/s
  • Cold Start: 30 s
  • Hot Start: 1-3 s
  • Tracking Sensitivity: -167dBm
  • Input Voltage: 3.3~5.5V (typical value 5V)
  • Maximum Altitude: 50000m
  • Maximum Speed: 500m/s
  • Maximum Acceleration: ≤4G
  • Baud Rate: 4800-115200bps (recommended 115200bps)
  • GPS Module Size: 16.2x12.3x4.9mm
  • GPS Antenna Size: 12*12mm
  • Weight: 2.4g (±0.5g)

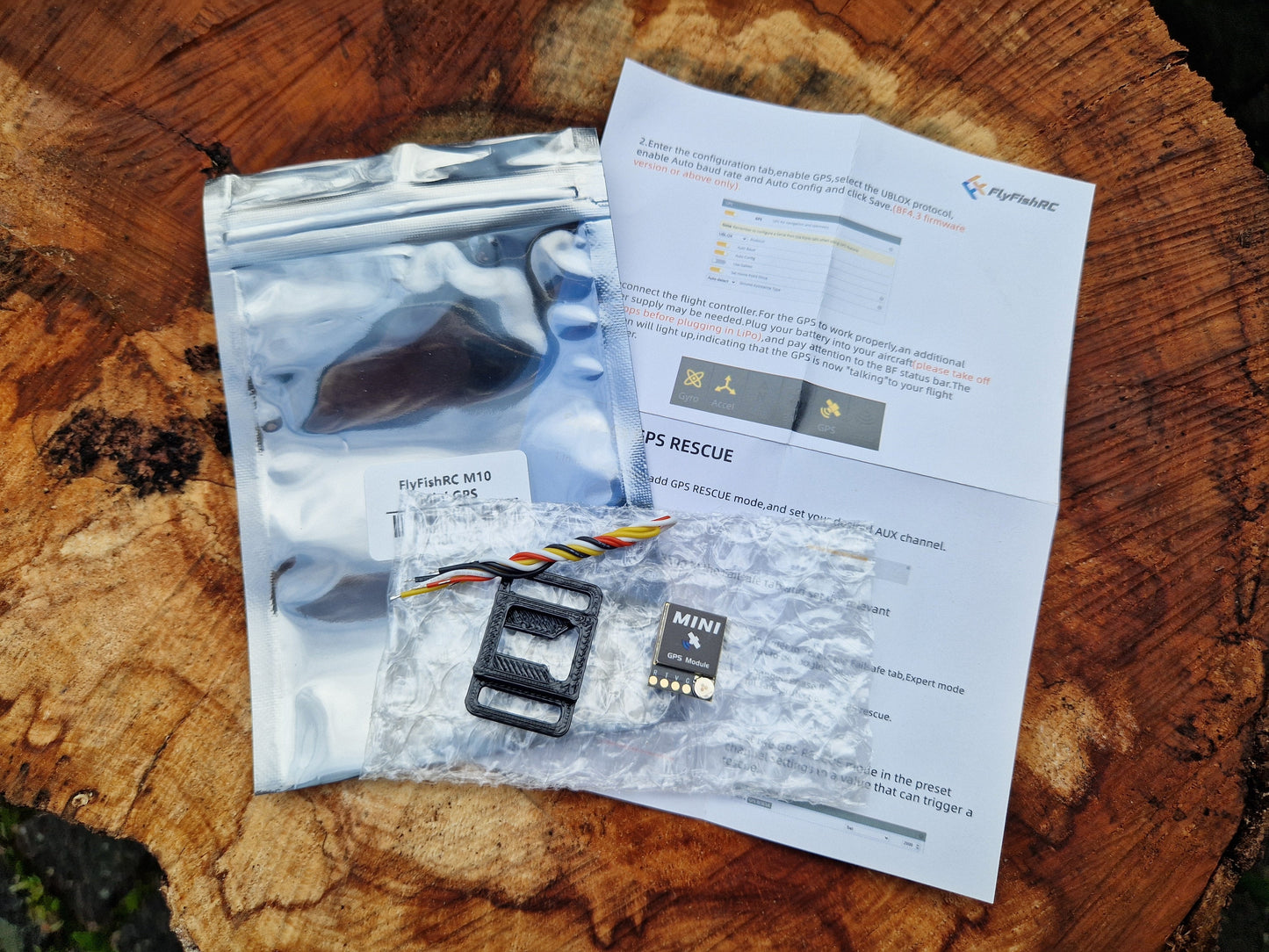

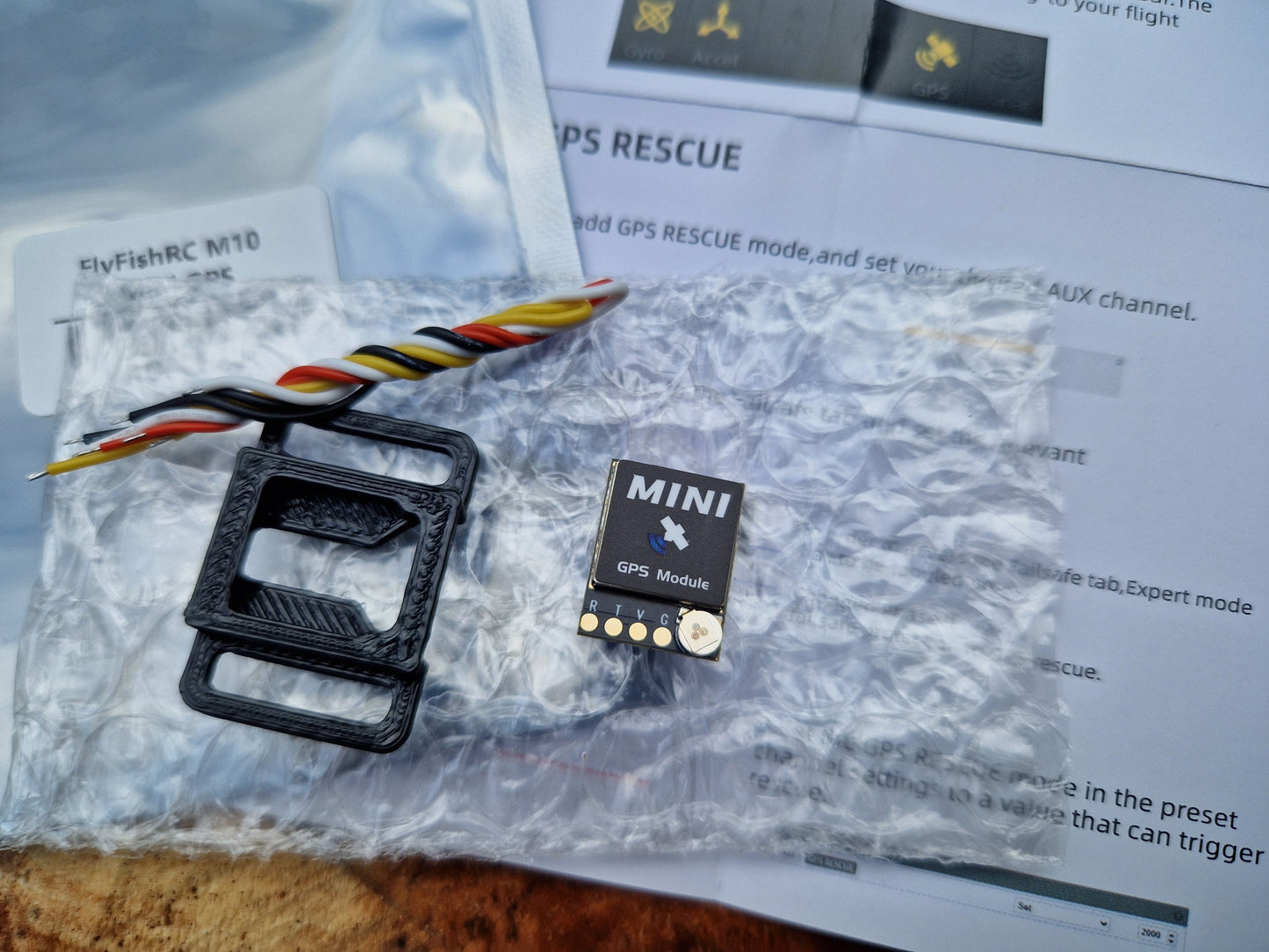

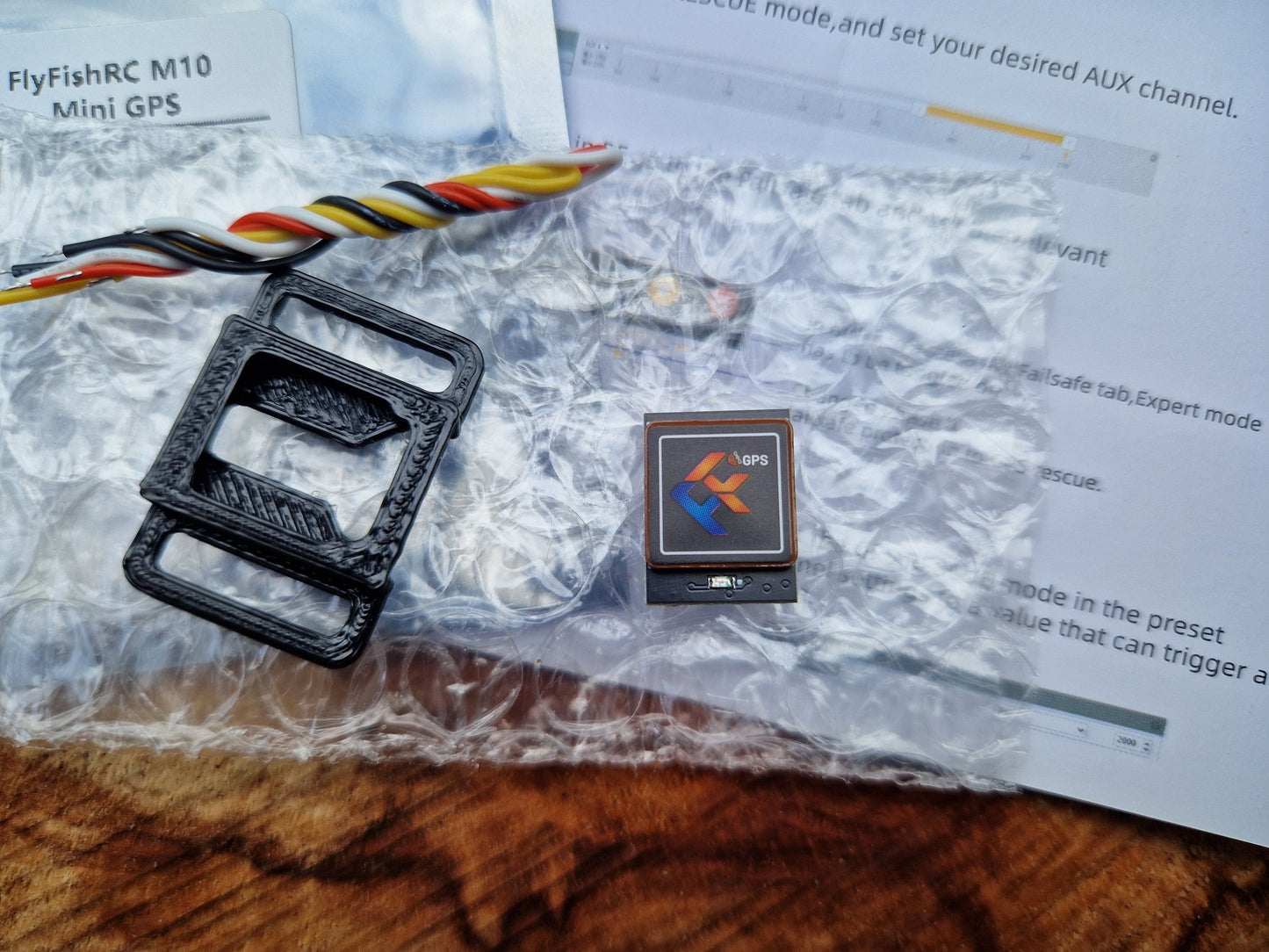

Package Includes

1x GPS module

1x Battery strap GPS Mount

4x #30 Silicone Cable
