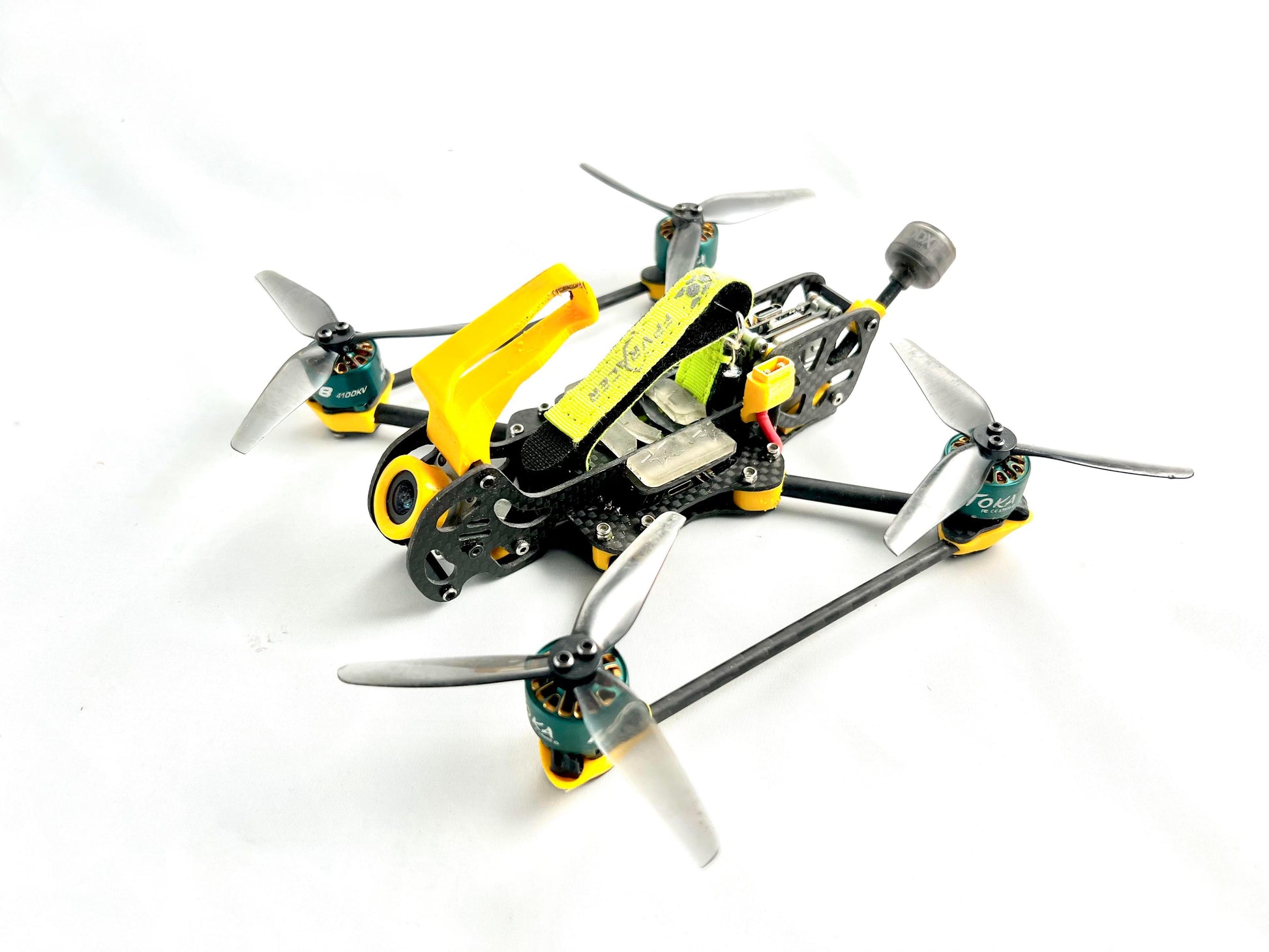

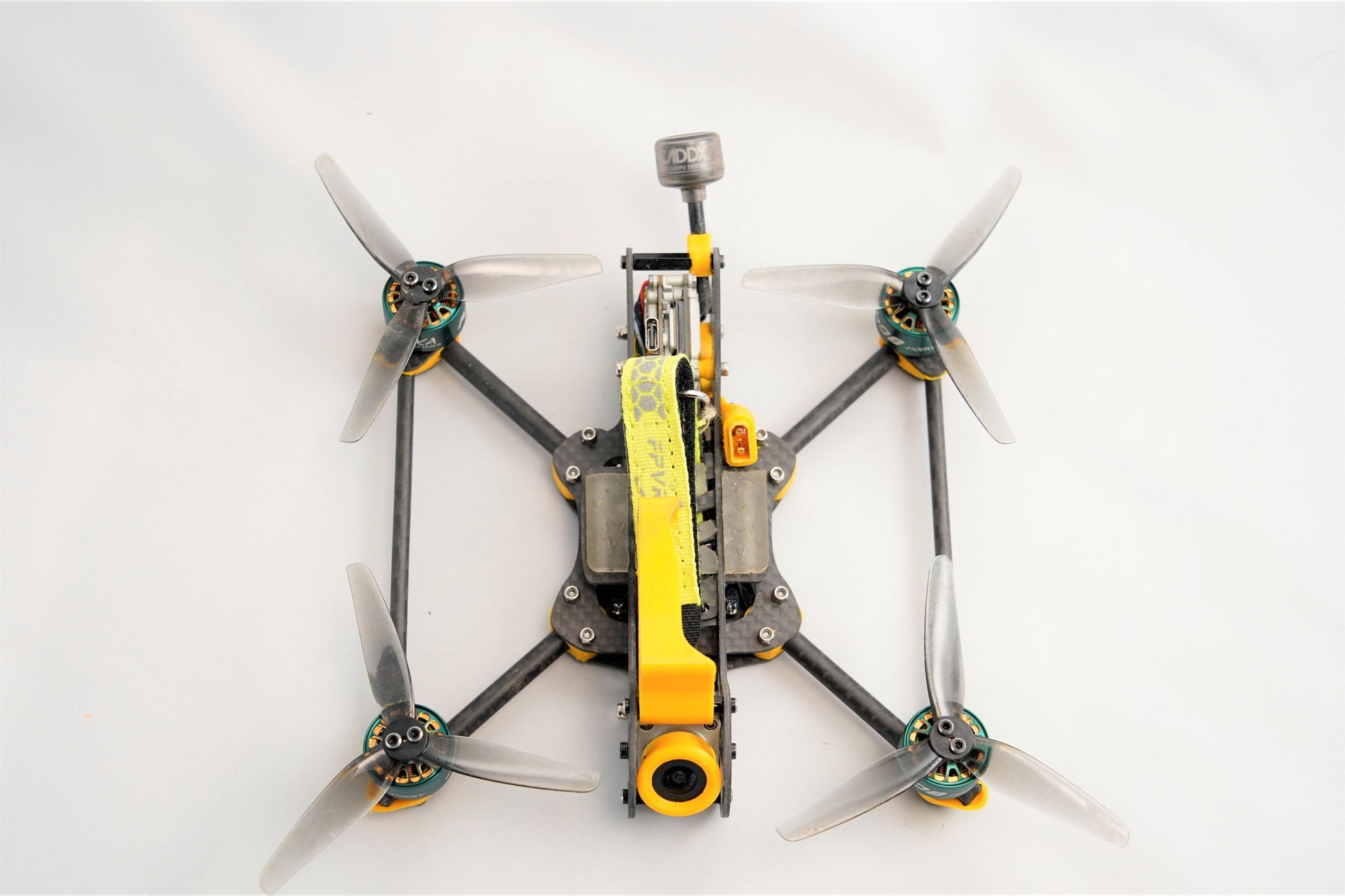

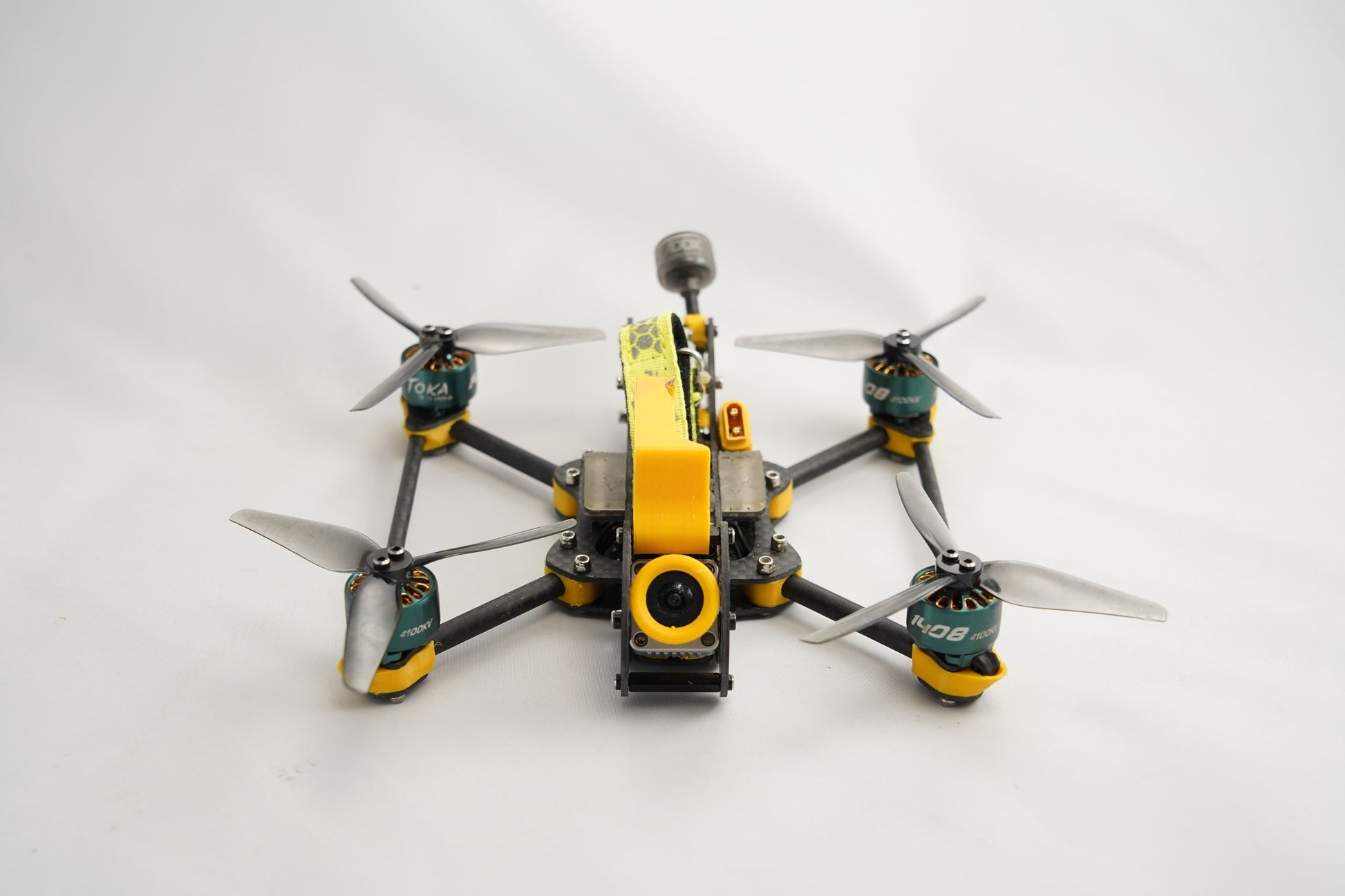

the Quack 3.5" frame-kit

The Tubular Turbine Quad (or Tubes'n'TPU Quad)

This is the full build set including all nessercary parts.

Please check the colors page to learn about the different materials and the sponsored colors!

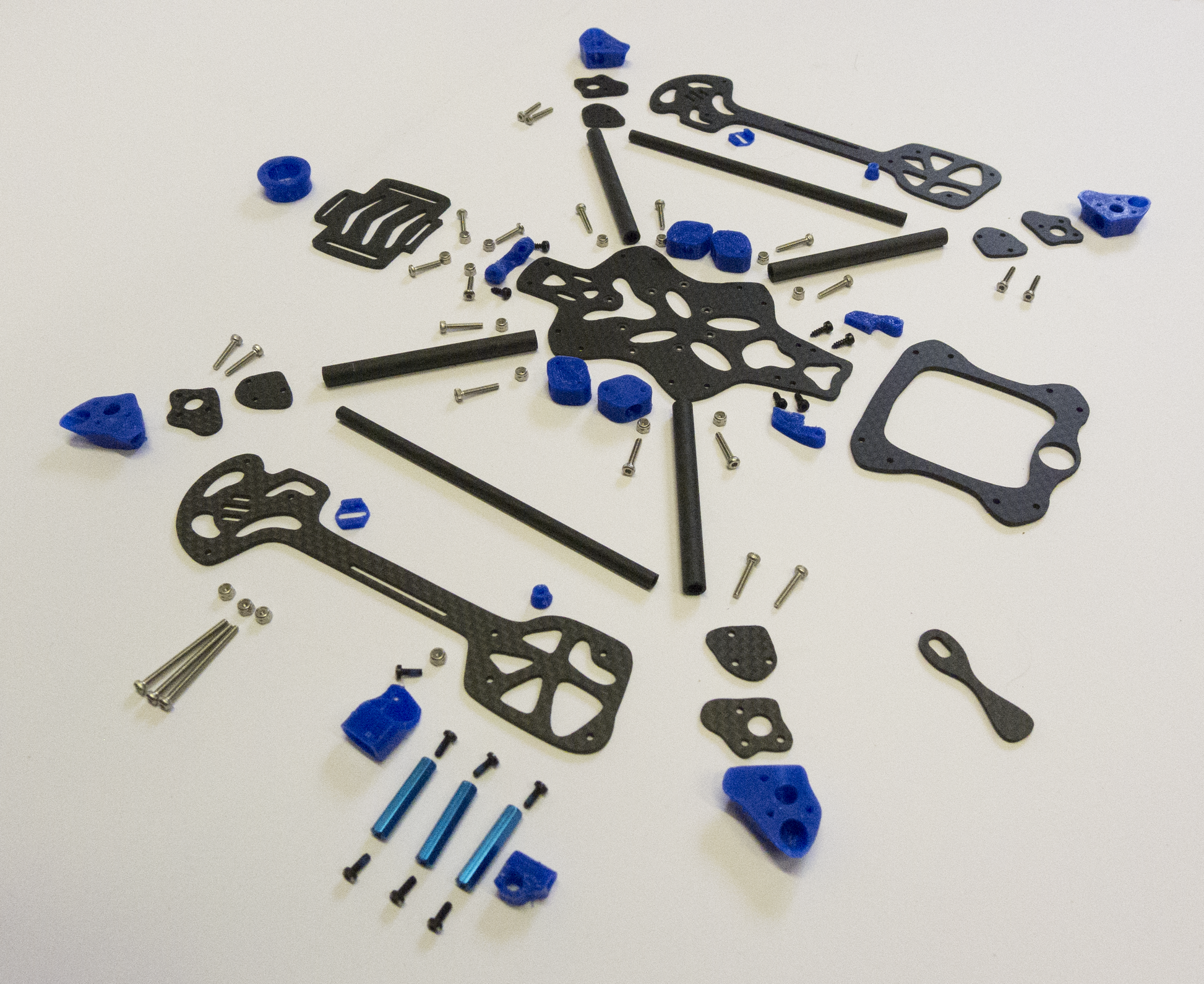

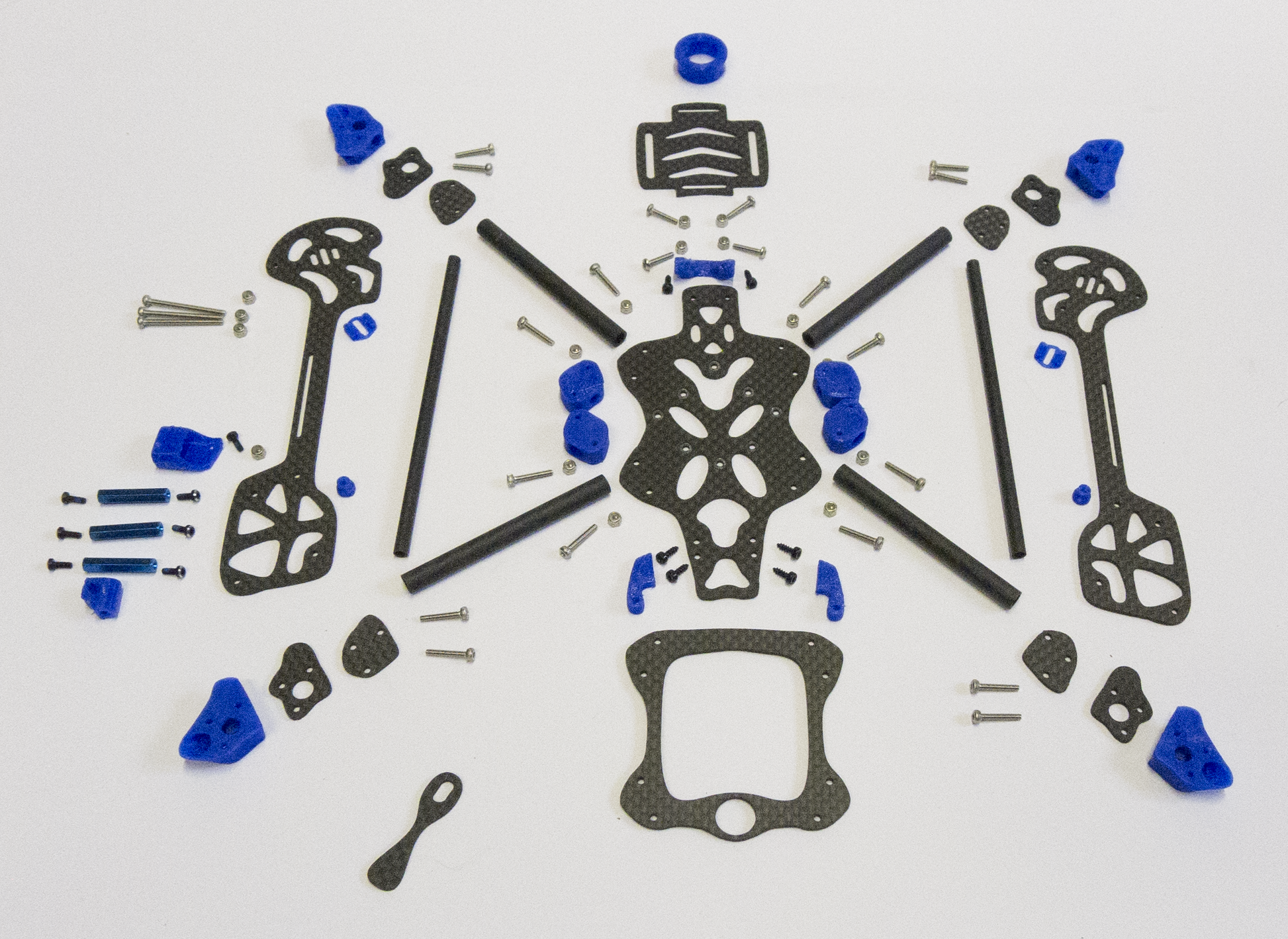

Included Parts:

Carbon:

• Baseplate
• Sandwichplate
• Batteryplate
• 2x Sideplate clean section
• 4x Motorplate top
• 4x Motorplate bottom
• 4x Tubular arm
• 2x Side brace
• Funky Carbon wrench

Metal:

• 16x Screw M2x20 (motor & arm mount)
• 8 + 3 + 4 = 15x Lock nut M2 (arm mount + clean section + AIO)
• 3x Standoff M2 x 20mm (clean section)
• 3x screw M2 x 25mm (clean section)
• 6x screw M2 x 6mm (clean section)
• 6 x screw self tapping 2x6mm (connect clean section to baseplate)
• 4 x screw M2 x 10mm (AIO-mount)

TPU (choose your color and hardness):

• 4 x arm-mount
• 4 x motor-mount
• 2 x rearmount (clean section)
• 1 x frontmount (clean section)
• 2 x camera spacer (for 19mm cam)
• 1 x XT30 mount
• 1 x Antenna mount
• 2 x spacer (Vista)

Accessories:

• Lipo-Strap 15x200mm
• Lipo Pad 50x20mm

You will still need the following to make it fly:

• 20mm AIO 25Amp+
• 4x Motor 12mm M2 mount
• Caddx Vista + Camera
• Receiver
• Battery 4S 650-850mAh / 6S 520-650mAh
